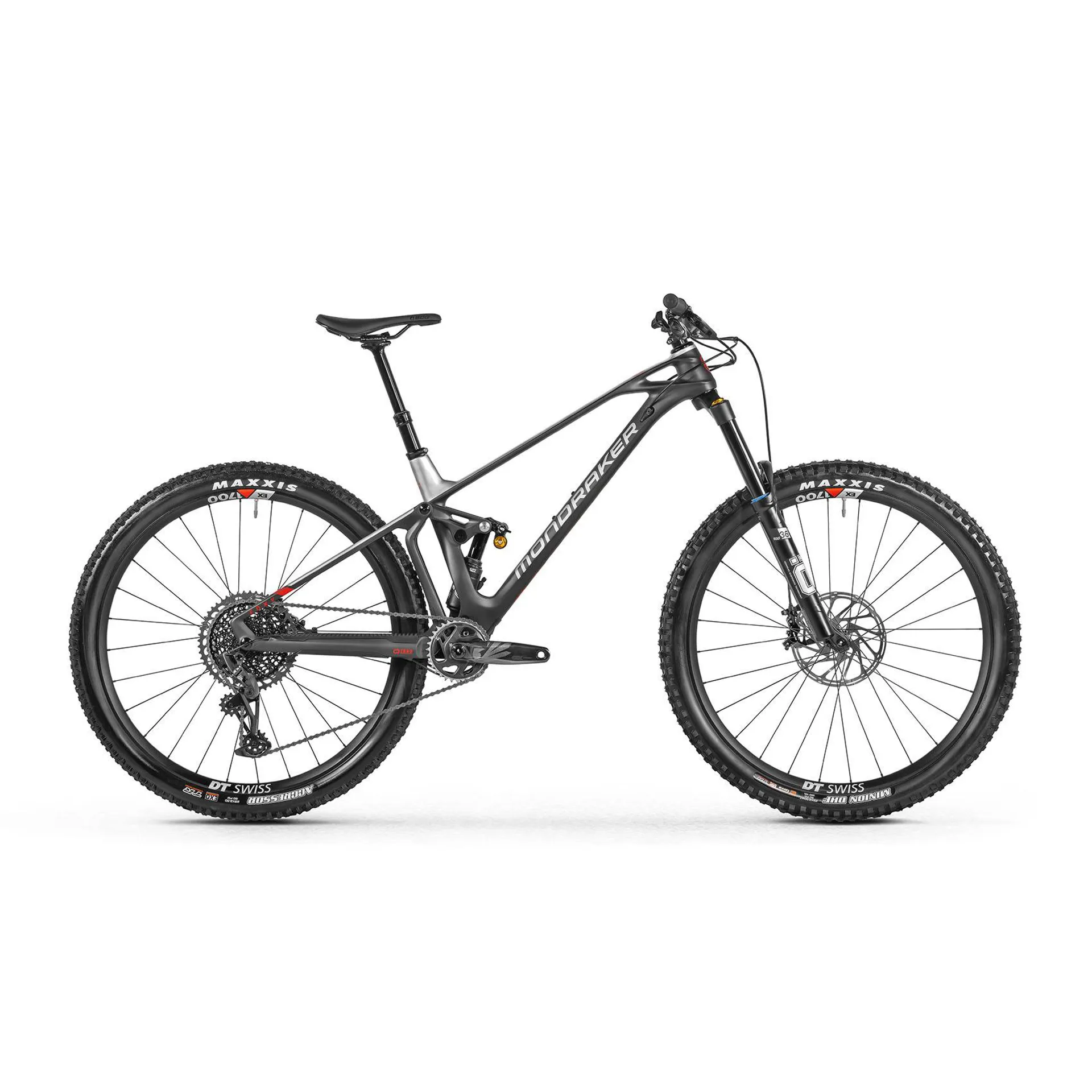

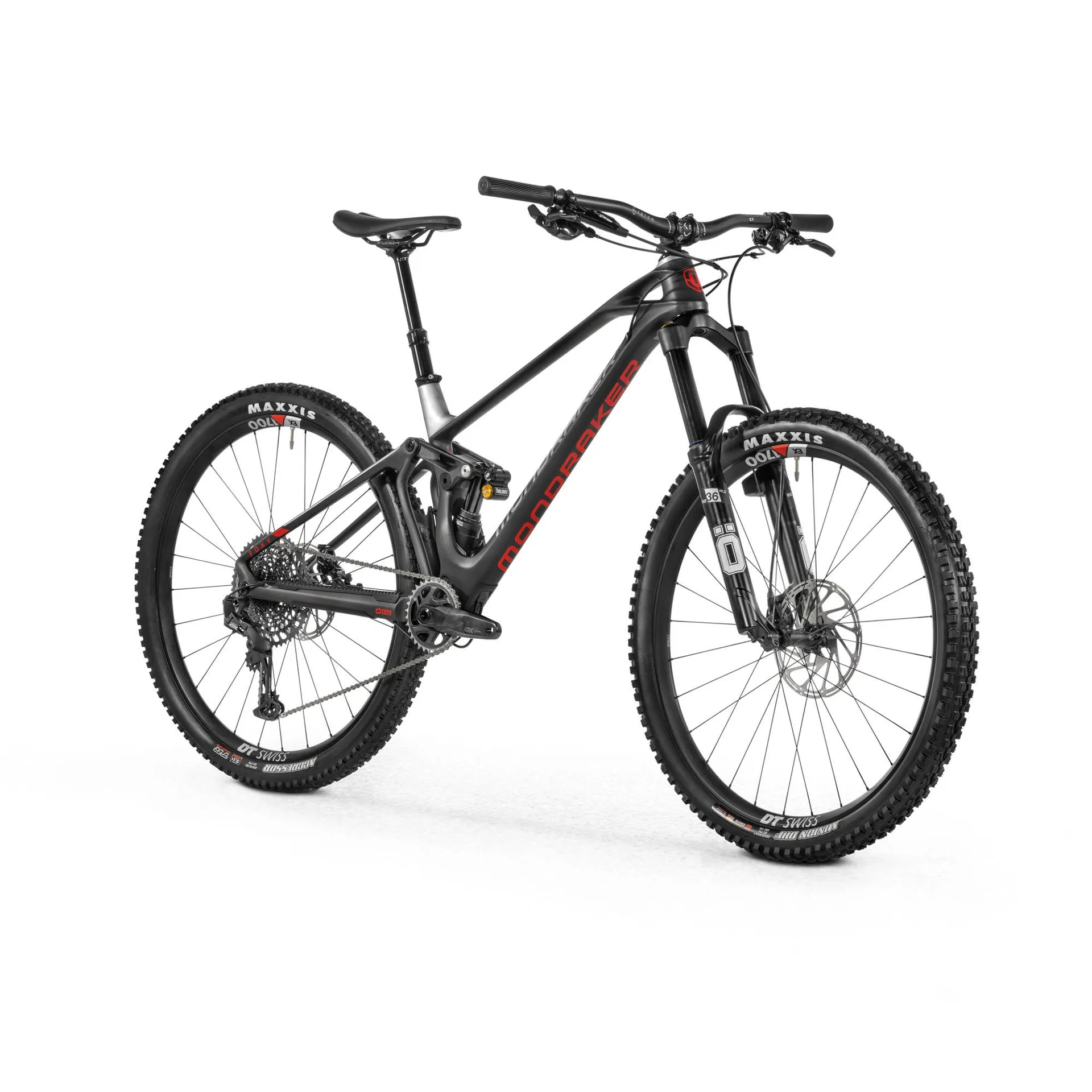

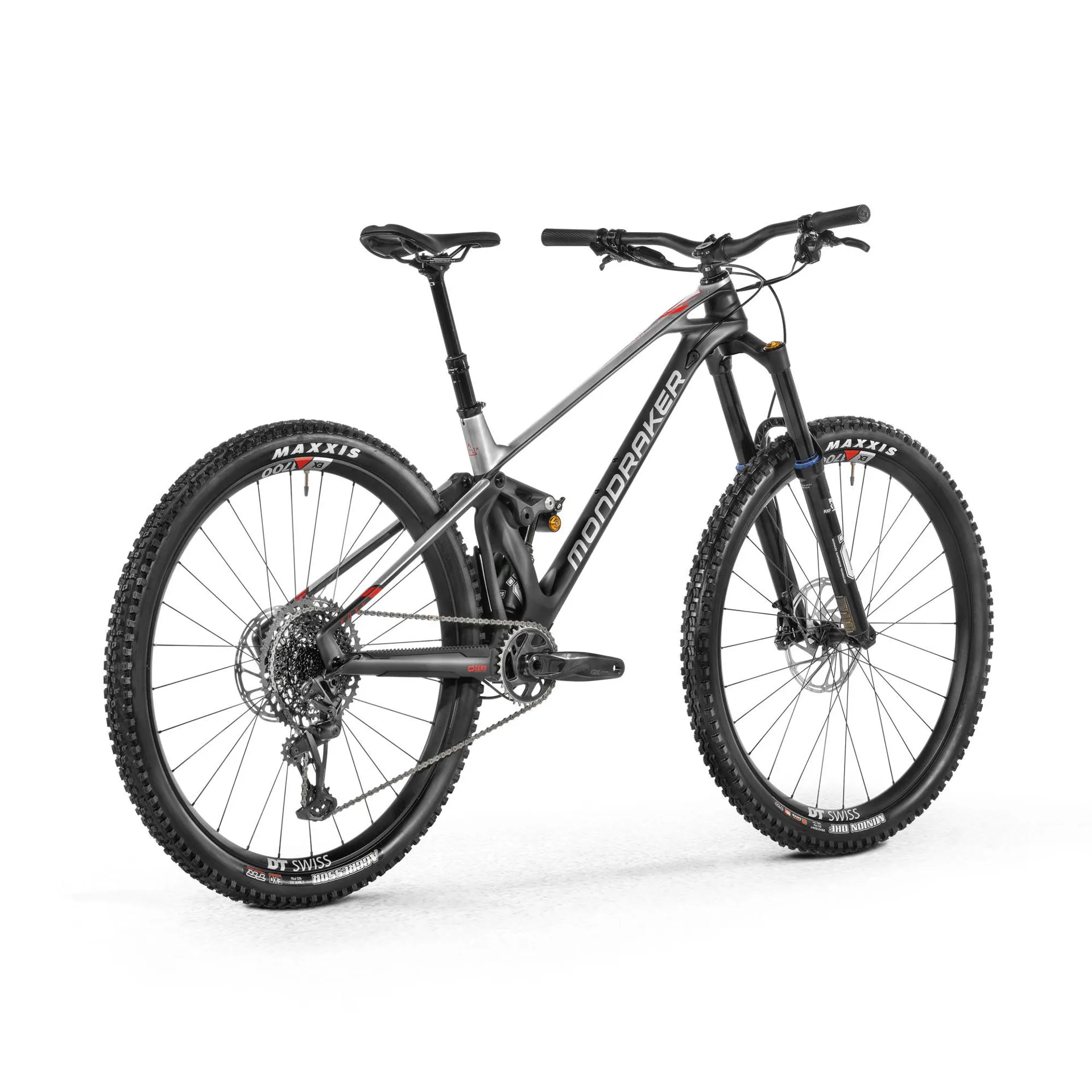

Constructed from their lightest and highest quality stealth air carbon the new 29er has been tweaked and honed creating a truly amazing bike. Based on new 29er specific zero suspension kinematics and optimised forward geometry the 2021 foxy 29 truly showcases years of foxy development.
The Foxy Carbon RR pumps a double shot of adrenalin with superlative fork and damper from Swedish suspension legends Öhlins. The latest RXF36 M.2 160mm travel fork maximises the impeccable control of the Forward Geometry handling. Tuned TTX Air rear shock adds precise trail connection to the carbon enhanced linkage and Enduro Max bearings of the 150mm travel Zero Suspension system. The optional Geometry Kit – steering cup change – combines with next level suspension adjustment for ultimate personal tuning. Add top performance components from SRAM, DT Swiss and Maxxis and this is the perfect Mondraker for extending the Enduro advantage of expert riders.
COMPONENTS
Frame
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit
Sizes
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock
Öhlins TTX Air 205x62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings
C20 compression, R35 rebound
Fork
Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Krypton FG 30mm, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Kripton Carbon 0.5, rise: 12,5mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm
Saddle
SDG BEL-AIR 3.0, EVA foam, steel rails
Front brake
Sram G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram G2 RS, SwingLink, tool-free reach adjust
Rims
DT Swiss EX1700 Spline 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes
Spokes
DT Competition, straightpull
Front hub
DT 350, Boost 15x110mm, IS 6 bolts
Rear hub
DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6 bolts, XD freehub
Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset
Sram GX Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Pedals
Does not come with pedals
Chain
Sram NX Eagle, 12s, Powerlock
Rear derrailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Casette
Sram XG-1275, 10-52T, 12s
Derailleur hanger
Mondraker M068
Others
*Optional Geometry kit: steering cups: +/- 1º
Weight
13.8 kg
