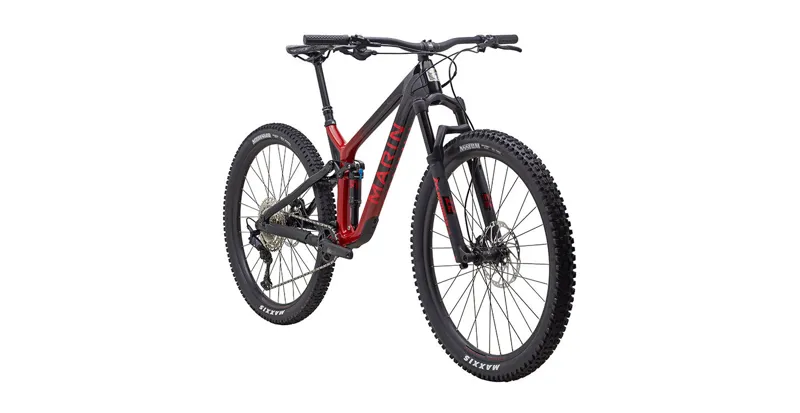

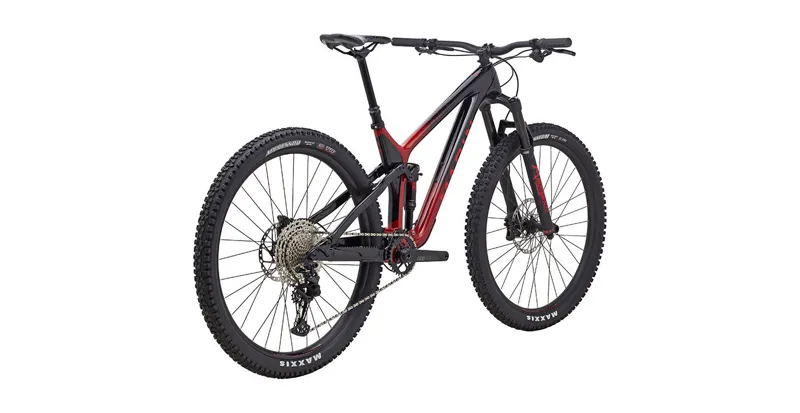

The Rift Zone is Marin's fastest MultiTrac bike, and with the 29" tires perfect for maximum speed and best rollover on the trail. The modern geometry is more aggressive than that of an XC Race Bike, and ensures maximum control and fun at top speed.
Unidirectional Carbon Fiber Frame
The Rift Zone Carbon 1 and 2 models feature high modulus carbon fiber and monocoque construction to deliver the lightest and highest performing Rift Zones Marin has ever produced.
Multitrac Suspension Technology
MultiTrac is an advanced suspension system tuned for a balanced ride that can absorb big hits with an efficient pedaling platform. The Rocker Link provides progressive leverage to the shock for small bumps and the feel of long travel on big drops and rocks.
Internal routing
Both carbon and aluminum frames feature full internal cable routing in the front triangle of the frame with Marin's brand new internal cable routing for clean, rattle-free cable routing.
SPECIFICATIONS
FRAME
Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION
Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
REAR SUSPENSION
Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
RIMS
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB, REAR
Forged Alloy, 148x12mm, Quad Sealed Bearings, Disc, 32H, Standard Freehub Body
HUB, FRONT
Forged Alloy, 110x15mm, Disc, 32H
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible
DERAILLEUR, REAR
Shimano SLX, 12-Speed, SGS
Shimano SLX, 12-Speed, SL-7100R
CRANKSET
New FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
BOTTOM BRACKET
Mego EXO 73mm BSA
CHAIN
KMC X-12 Silver and Black
CASSETTE
SunRace, 12-Speed, 11-51T, ED Black
BRAKE, FRONT
Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
BRAKE, REAR
Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
BRAKE LEVERS
Shimano MT401 Hydraulic Lever
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM
Marin 3D Forged Alloy, 35mm
GRIPS
Marin Grizzly Single Clamp Locking
HEADSET
FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
SADDLE
Marin Speed Concept
GEOMETRY
| S | M | L | XL |
---|
ASTACK | 602.6 | 607.15 | 611.7 | 616.25 |
BREACH | 430 | 455 | 480 | 515 |
CHEADTUBE ANGLE | 65.5° | 65.5° | 65.5° | 65.5° |
DHEADTUBE LENGTH | 100 | 105 | 110 | 115 |
ESEATTUBE ANGLE | 76° | 76° | 76° | 76° |
FSEATTUBE LENGTH | 390 | 400 | 425 | 430 |
GTOPTUBE EFFECTIVE | 580.24 | 606.36 | 632.51 | 668.65 |
HBB HEIGHT | 344 | 344 | 344 | 344 |
IBB DROP | 34 | 34 | 34 | 34 |
JCHAINSTAY | 425 | 425 | 425 | 425 |
KWHEELBASE | 1158.92 | 1186 | 1213 | 1252 |
LSTANDOVER HEIGHT | 643 | 650 | 659 | 662 |
MFORK OFFSET | 44 | 44 | 44 | 44 |
SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
STEM LENGTH | 35 | 35 | 35 | 35 |
CRANK LENGTH | 170 | 175 | 175 | 175 |
All lengths in millimeters
