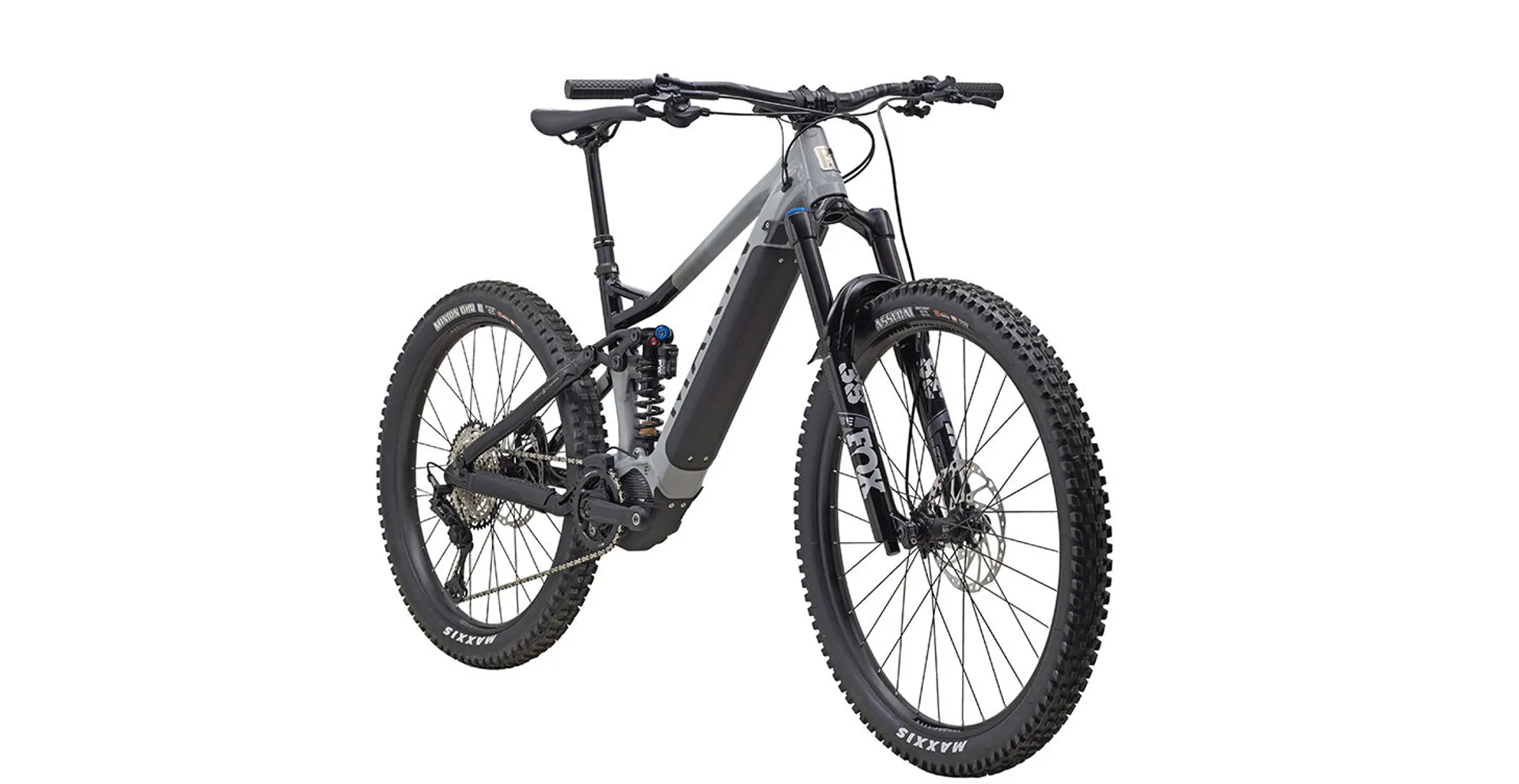

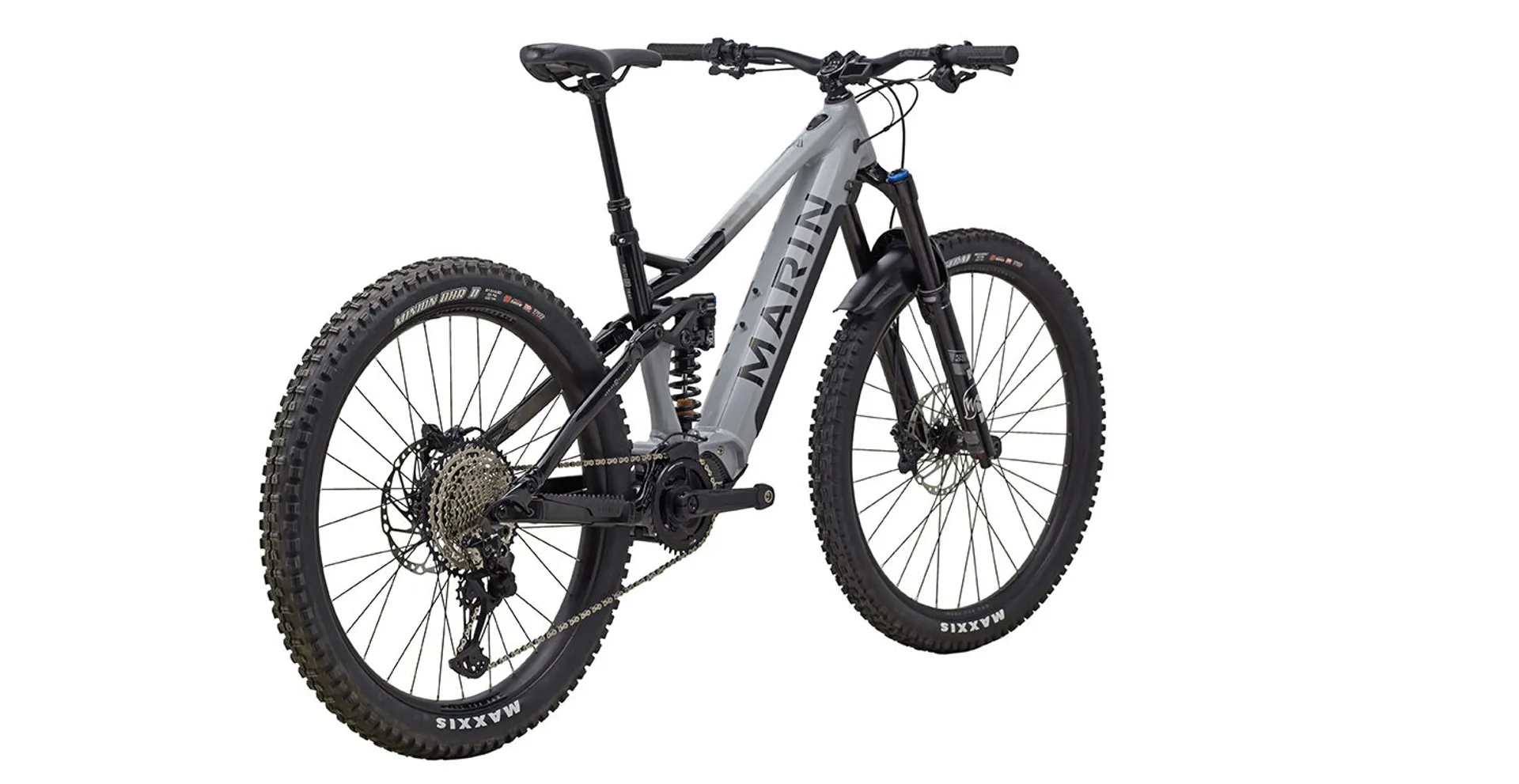

Marin Alpine Trail E2 Electric Mountain Bike Grey Black

Season:2022

Brand:Marin

Code:732456

MOUNTAIN BIKING WITH A BOOST

BEYOND CAPABLE, BOTH UP AND DOWN, IN EVEN THE MOST CHALLENGING TERRAIN

MAXIMIZING FUN

The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.

Key upgrades from Alpine Trail E1:

  • Shimano STEPS EP8 system and 630Wh battery
  • Fox 38/Float DHX2 Performance Elite suspension
  • Shimano XT/SLX 12-speed drivetrain w/10-51t cassette
  • Shimano SLX 4-piston disc brakes
  • Deity Ridgeline bar/Copperhead stem






SPECIFICATIONS

  • FRAME

    All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

  • FORK

    Fox 38 Performance Elite, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

  • SHOCK

    Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring = 350lb, L/XL Spring = 450lb

  • RIMS

    Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width; Pinned Joint, Disc Specific, Tubeless Compatible

  • HUB REAR

    Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body

  • HUB FRONT

    Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

  • SPOKES

    14g Black Stainless Steel

  • TIRES

    Front: Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible

  • DERAILLEUR REAR

    Shimano XT 8100 12-Speed, SGS

  • DERAILLEUR FRONT

    -

  • SHIFT LEVER

    Shimano SLX 7100 12-Speed, I-Spec EV

  • CRANKSET

    e13 e*Spec Plus Crank, 165mm Length with e13 e*Spec DM Chainring 38T, e13 Plus Chainguide, Aluminum Plate

  • MOTOR

    Shimano Steps EP8 Drive Unit, 250W, 85Nm

  • CHAIN

    KMC E12S, EBike Specific Chain

  • CASSETTE

    Shimano SLX M7100, 12-Speed, 10-51T

  • BRAKES FRONT

    Shimano SLX 4-Piston Hydraulic Disc, 203mm Rotor

  • BRAKES REAR

    Shimano SLX 4-Piston Hydraulic Disc, 203mm Rotor w/ Speed Sensor

  • BRAKE LEVERS

    Shimano SLX Levers, I-Spec EV

  • HANDLEBAR

    Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back

  • STEM

    Marin CNC Stem, 35mm Length, 35mm Bar Bore

  • GRIPS

    Marin Single Clamp Locking

  • HEADSET

    FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • SEATPOST

    X-Fusion Manic, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

  • SADDLE

    Marin eMTB Saddle

  • PEDALS

    Marin MTB Plastic

  • BATTERY

    BT-8036, Internal 630Wh

  • DISPLAY

    SC-E8000 Display

  • SWITCH

    SW-E7000 Left Hand Switch for Assist Mode Change

  • EXTRAS

    Shimano Left Hand Switch for Assist Mode Change, Shimano Battery Charger EC-E6002, Bolt-on Thru-Axle

Specifications, pricing, and availability are subject to change without notice.

GEOMETRY

Alpine Trail E2 geometry diagram
SMLXL
STACK613622631640
REACH445465485505
HEADTUBE ANGLE63°63°63°63°
HEADTUBE LENGTH100110120130
SEATTUBE ANGLE78°78°78°78°
SEATTUBE LENGTH390400425430
TOPTUBE EFFECTIVE575597619641
BB HEIGHT340.5340.5340.5340.5
BB DROP28282828
CHAINSTAY435435435435
WHEELBASE1215123912641288
STANDOVER HEIGHT681.6681.4686.8689.8
FORK OFFSET44444444
SEATPOST DIAMETER30.930.930.930.9
HANDLEBAR WIDTH780780780780
STEM LENGTH50505050
CRANK LENGTH165165165165

All lengths in millimeters

TECHNOLOGY

Detail image of Shimano STEPs battery on Alpine Trail E mountain bike

SERIES 4 ALUMINUM FRAME

Alpine Trail E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

Detail shot of Alpine Trail E2 rear shock

MULTITRAC SUSPENSION

The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system. With this combination there is no need for platform or lockout levers, just get on and blast up the hills.

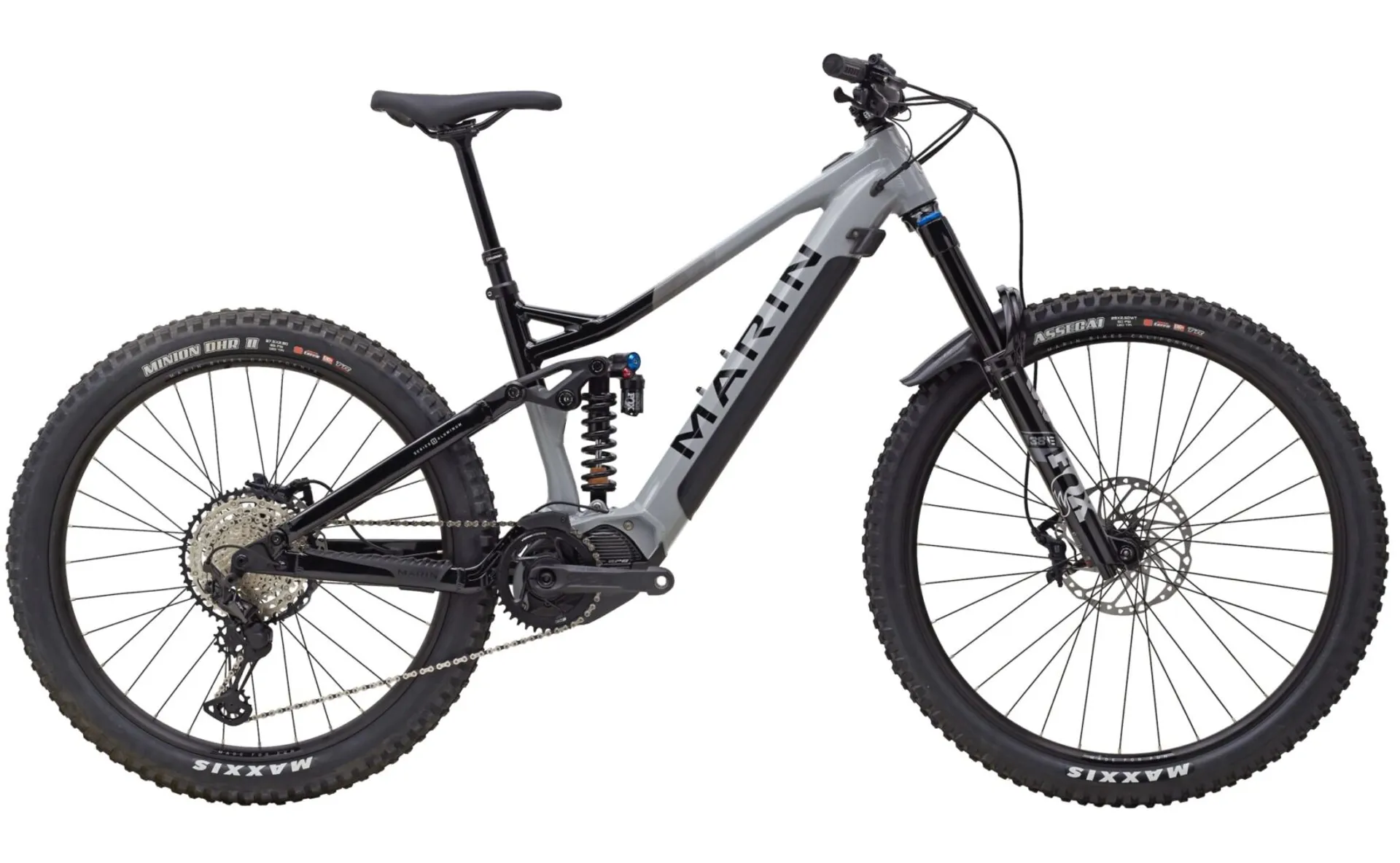

Profile image of Alpine Trail E

MIXED WHEEL SIZES

29” front and 27.5”+ rear wheel sizes are the ideal combination for the Alpine Trail E, with larger front wheel easily rolling over most any trail obstacle and offering the best cornering traction, while the burly 27.5” x 2.8” rear setup adds playfulness and enhances acceleration and braking traction.

Detail image of dropper post on Alpine Trail E

DROPPER POST OPTIMIZED

The modern day trail rider needs their saddle out of the way at times, while low-slung frames require longer length posts. On the Alpine Trail E, seat tube lengths have been minimized, along with minimum insertion depths, so that riders of all sizes can get the proper extension needed.

SUSPENSION SETUP

REAR SHOCK SET UP

Recommended Sag=30%/19.5mm

Step 1: Set correct pressure in rear shock.

Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).

Step 3: Reset O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.

Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.

Step 5: Adjust rebound setting to ensure proper control.

FORK SET UP

Marin recommends that all bikes front and rear suspension feel balanced

Step 1: After rear sag is set follow the recommended pressure from the fork manufacture.

Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.

Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.

FOX FLOAT DPX2

RIDER WEIGHT AND SHOCK SETUP
LBSKGCOIL LB/IN
12054300
13059300
14064300
15068350
16073350
17077350
18082400
19086400
20091400
21095450
220100450
230104450
240109500
250113500
260118500
270122500
