BIG ALL-MOUNTAIN DAYS WHERE TRAVEL AND GEOMETRY MATTER MOST
BUILT FOR ABUSE AND ROWDY RIDING
ENDURO-STYLE RIDING AND RACING
BIG BIKE, BIG WHEELS, BIG FUN
The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
Key upgrades from Alpine Trail 7:
- RockShox Lyrik Ultimate/Super Deluxe coil suspension
- Shimano SLX/XT drivetrain
- FSA Gradient crankset

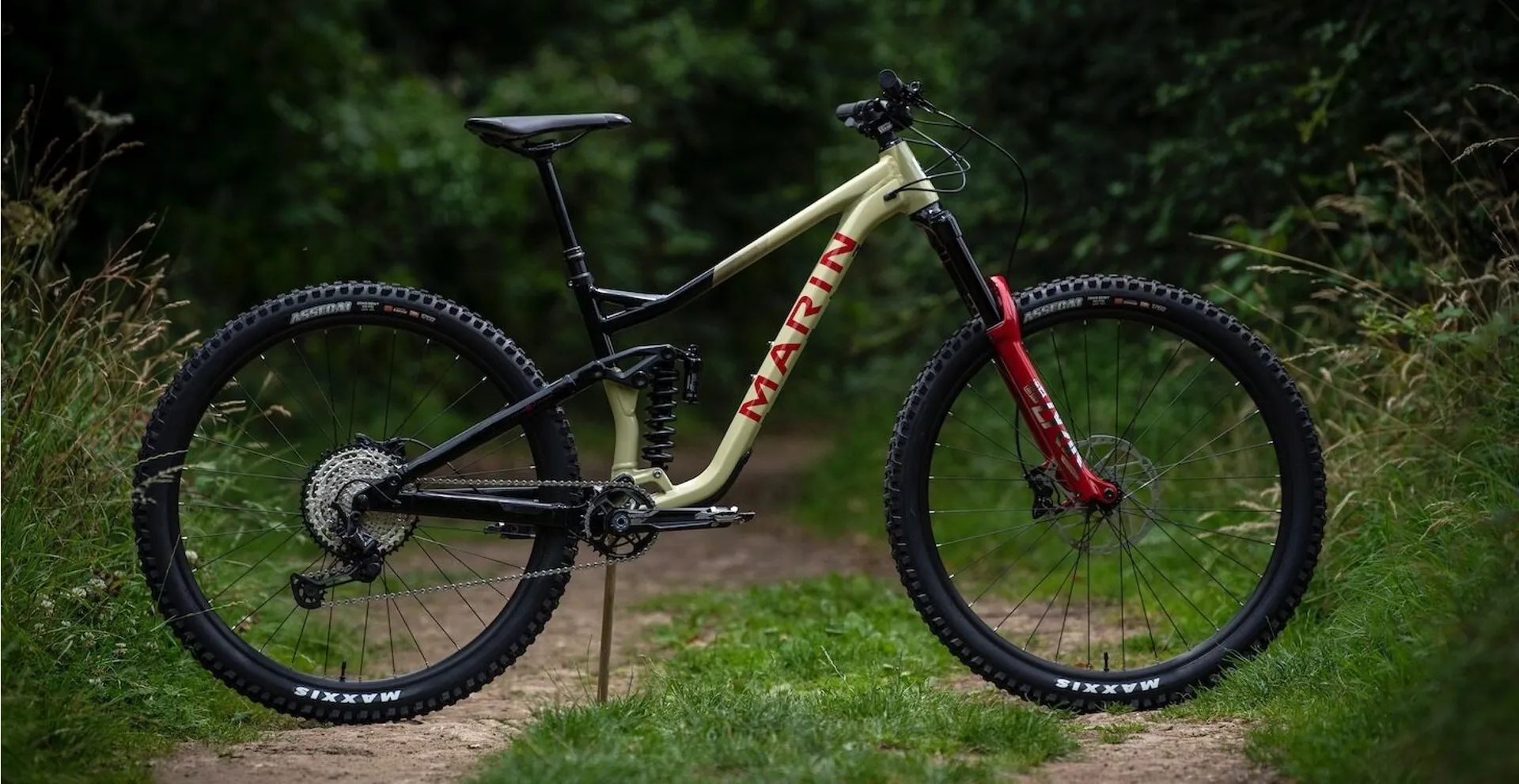

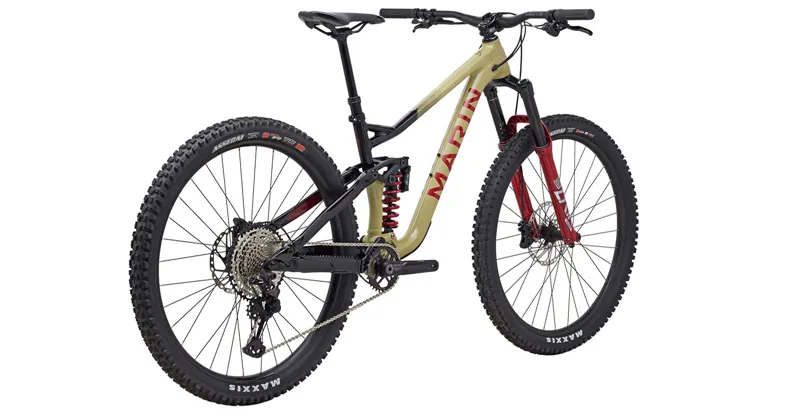

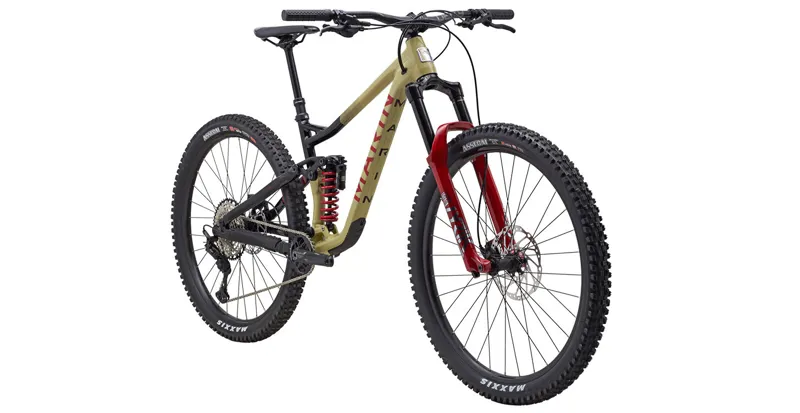

Marin's Alpine Trail is back with a new colour way and updated spec for 2022 and seen here in the new top XR spec. A light yet sturdy frame is built with hard hitting riding in mind. 150mm of rear travel with 160mm of front fork travel are the perfect combo for rowdy days in the woods. Shimano 12 speed drivetrain to build up the speed and 4-pot Shimano brakes bring everything back under control. The wide range cassette of Shimano's new 12 speed system also make the Alpine trail a surprisingly strong climber. Great design and geometry match with an outstanding spec list make the Alpine Trail all the Enduro bike you could need.
SPECIFICATIONS
FRAME

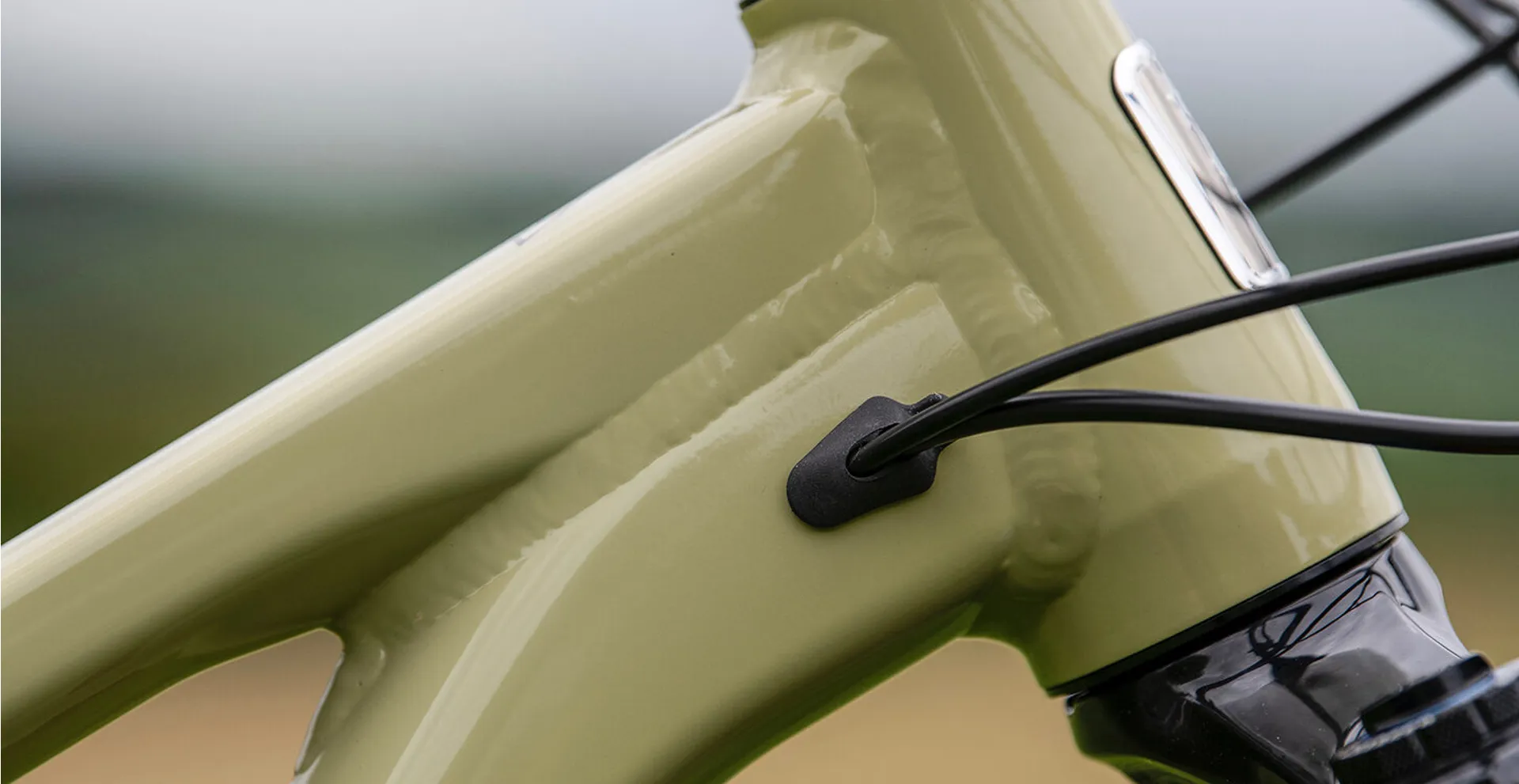

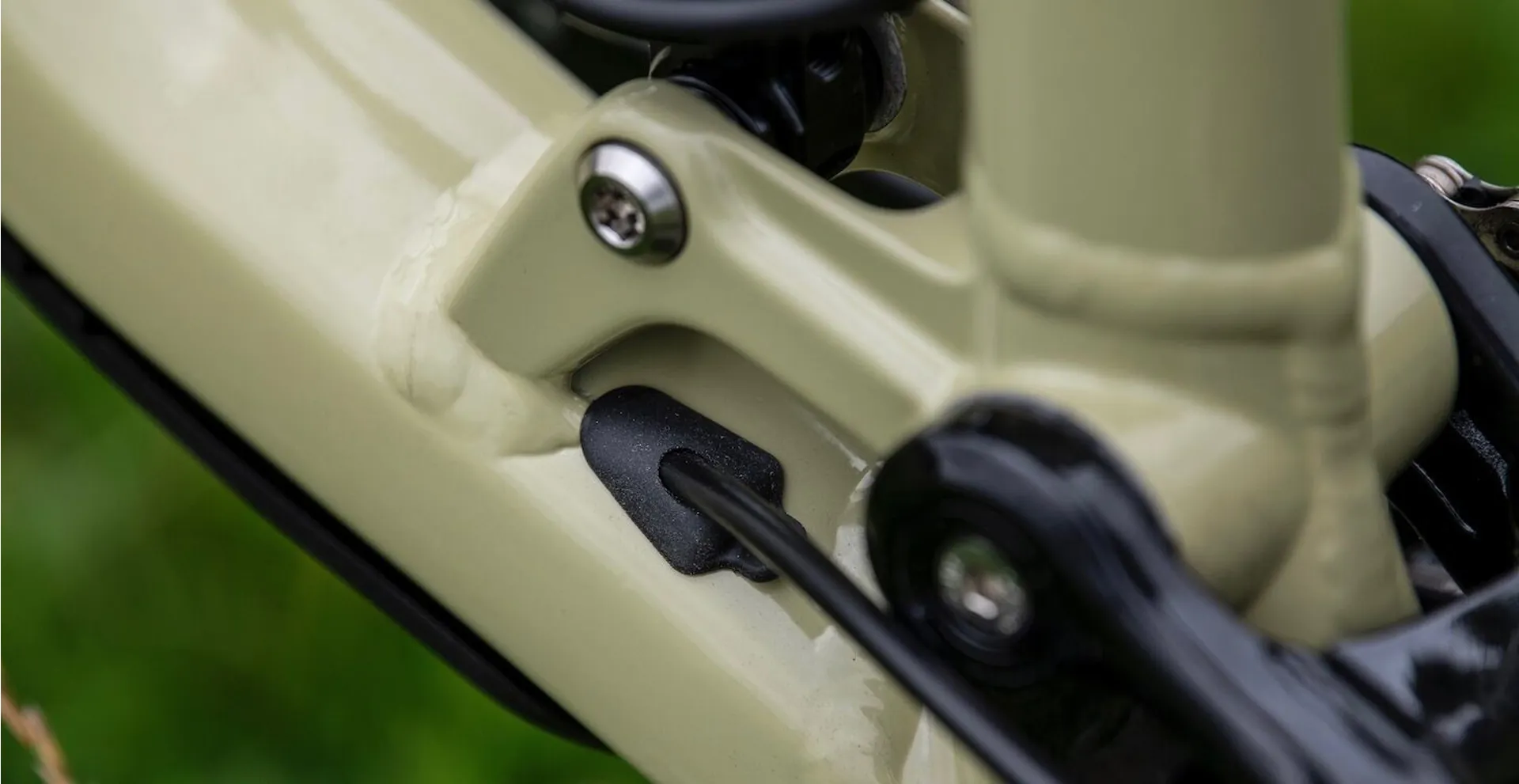

Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION
RockShox Lyrik Ultimate, 29”, 160mm of Travel, Air Sprung, Debonair, Charger 2.1, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset
REAR SUSPENSION
Rock Shox Super Deluxe Coil Ultimate RCT, Coil Spring, Climb Switch, LS Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount (S/M = 350lb, L/XL = 450lb)
RIMS
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB, REAR
Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body
HUB, FRONT
Shimano HF-MT410B, 110x15mm, Center\lock
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible
DERAILLEUR, REAR
Shimano XT 12-Speed, SGS
SHIFT LEVER
Shimano SLX 12-Speed, I-Spec EV
CRANKSET
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
BOTTOM BRACKET
MEGAEVO BB, 73mm BSA Threaded
CHAIN
KMC X-12 Silver and Black
CASSETTE
Shimano SLX M7100 Cassette, 12-Speed, 10-51T
BRAKE, FRONT
Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm Rotor
BRAKE, REAR
Shimano BR-MT420, 4-Piston Hydraulic Disc, 180mm Rotor
BRAKE LEVERS
Shimano BL-M4100 Hydraulic, I-Spec EV Compatible
HANDLEBAR
Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back
STEM

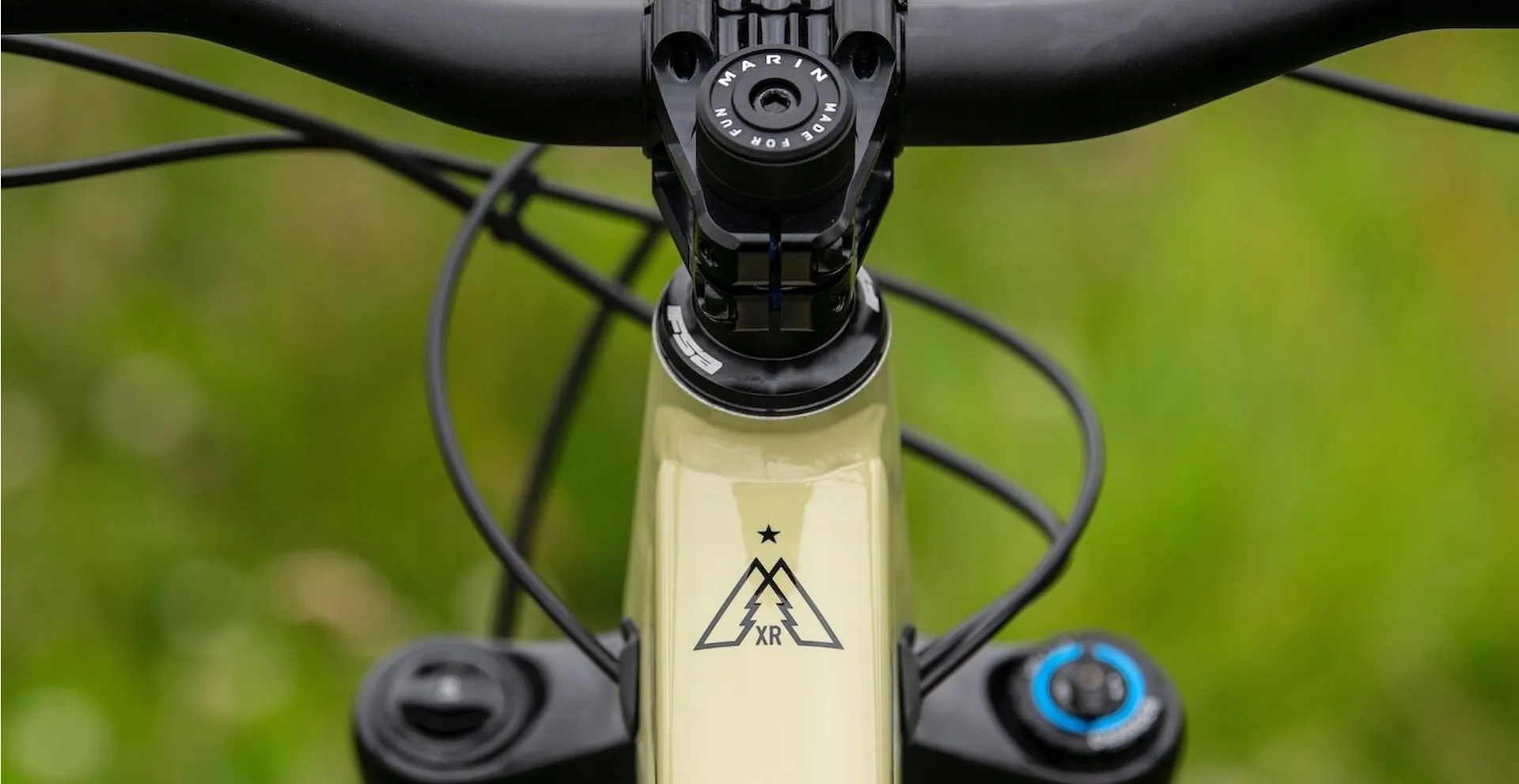

Marin CNC Stem, 35mm Length, 35mm Bar Bore
GRIPS
Marin Single Clamp Locking
HEADSET
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
SADDLE
Marin Speed Concept
GEOMETRY
| S | M | L | XL |
---|
ASTACK | 619 | 628 | 632 | 643 |
BREACH | 430 | 455 | 480 | 515 |
CHEADTUBE ANGLE | 63.5° | 63.5° | 63.5° | 63.5° |
DHEADTUBE LENGTH | 100 | 110 | 115 | 130 |
ESEATTUBE ANGLE | 78° | 78° | 78° | 78° |
FSEATTUBE LENGTH | 390 | 400 | 425 | 430 |
GTOPTUBE EFFECTIVE | 561.7 | 589 | 615 | 652 |
HBB HEIGHT | 342 | 342 | 342 | 342 |
IBB DROP | 35 | 35 | 35 | 35 |
JCHAINSTAY | 430 | 430 | 430 | 430 |
KWHEELBASE | 1199 | 1229 | 1256 | 1297 |
LSTANDOVER HEIGHT | 714 | 716 | 732 | 734 |
MFORK OFFSET | 44 | 44 | 44 | 44 |
SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
STEM LENGTH | 50 | 50 | 50 | 50 |
CRANK LENGTH | 170 | 170 | 170 | 170 |
All lengths in millimeters
