The CHASE RSP 5.0 frame is the culmination of all the upgrades to make it our best aluminum frame yet.
The CHASE RSP 5.0 frame is the culmination of all the upgrades to make it our best aluminum frame yet.
Chase

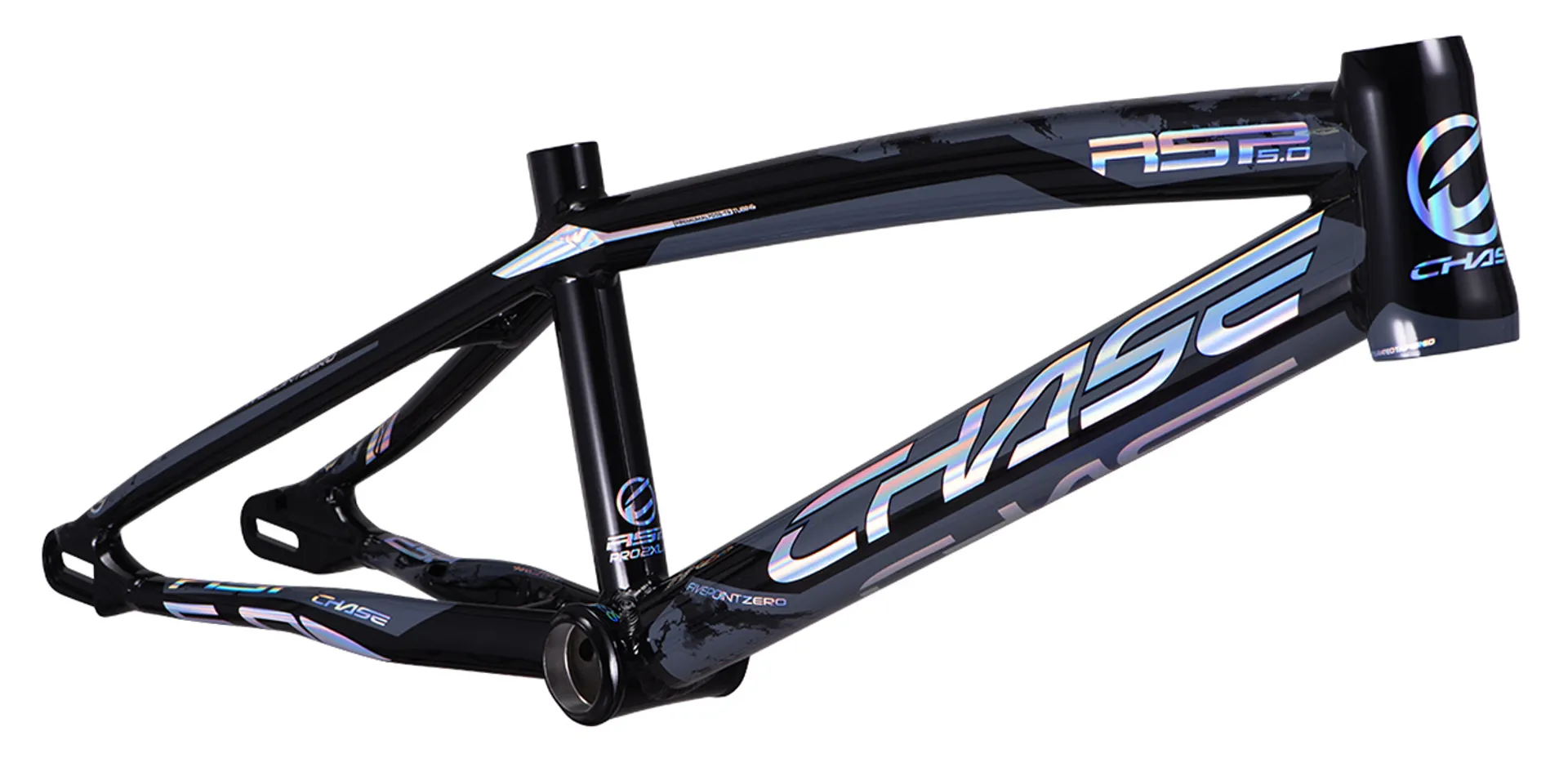

CHASE rsp5.0 BMX Race Frame Pro XL 21 TT Black With Holographic Decals

£659.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

90 Day Returns

We offer an extended 90 day return or exchange policy. Simply complete a returns form, send your items back to us in re-saleable condition and a full refund or exchange will be made. For returns received within 30 days a refund can be processed to the original payment method used for purchase. After the 30 day period a gift voucher for full purchase price will be issued if goods are in a re-saleable condition.


Returns can only be accepted with a completed returns form, please download the "Download Returns PDF" then print and complete.

Please send returns to:

Sorted Returns, Unit 2, Lineva House, Milner Street, Warrington, WA5 1AD, United Kingdom

  • If you need to check the pogress of your return please email tracking@sortedracegear.comand quote your Order Notification Order ID
  • We operate an extended returns policy of up to 30 days from purchase and extended 90 days for refund by gift voucher
  • During busy periods please allow 5-7 days for returns to be processed.
  • We cannot accept returns for items that have been used, worn, washed, soiled or damaged by the customer.
  • For hygiene reasons, items such as underwear, swimwear, bibshorts and speed suits cannot be returned if items have been worn or tied on by customer.
  • Returned Items must be in perfect re-saleable condition including all original parts, accessories, original attached tags and packaging. A 20% re-stock fee will be deducted from the refund if the returned item is not in full re-saleable condition.
  • Please include the completed returns form and proof of purchase when returning any goods. We can only accept returns with proof of purchase and a completed returns form.
  • If you receive an order that has been damaged, is missing any components or incorrect items received this must be reported by email within 48 hours of delivery. In these circumstances we will issue a returns number and returns label.

The Legal Information:

In accordance with the Distance Selling Regulations 2014, the customer has the right to a cooling off period of fourteen (14) business days, starting at the time goods are received, to cancel the contract and return said goods at their own expense, without having to give a reason. All returns can be indicated beforehand with THE MERCHANT customer service department. All goods must be returned to THE MERCHANT ADDRESS.

The cooling off period and right to cancel do not apply to contracts, orders for any goods made to your specification, any downloaded goods or unsealed goods including but not limited to (DVD, CD, Tapes, Software, Video and audio).

Only complete and unused goods in perfect condition for resale will be accepted. No refunds or exchanges will be made for incomplete, damaged, used or unsealed goods, including damage to original packaging or missing tags. The customer can exercise this right to withdrawal without penalty, excepting the return fee for the goods. If the customer exercises the right to withdrawal, they have the option of requesting a full refund or exchange of goods. If an exchange is requested, all shipping expenses shall be the responsibility of the customer.

If the right to withdrawal is exercised, THE MERCHANT will make every effort to refund the customer within 30 days.

In addition to our Returns Policy, under the Consumer Contracts Regulations, you have the right to cancel your order up to 14 days from the day you receive your goods if you are an online, mail or telephone order customer. You then have a further 14 days from the date you notify the retailer of your cancellation to return the goods.

Please note we cannot accept returns for bespoke or made to order items such as custom bike builds, custom anodise colour components and complete wheels. All wheels and wheel sets listed on our website are custom built/configured to order.

We reserve the right to refuse returns due to hygiene reasons, items such as underwear, swimwear, bibshorts and speed suits cannot be returned if items have been worn by customer.

International Delivery Customs Charges And International Returns

Dependant on the country there may be additional local taxes, VAT, Duty and customs charges. Our Courier will normally pay all these charges on behalf of the customer. The courier will then collect these fees from the customer plus an admin fee. THE MERCHANT is not responsible for any customs related charges unless a specific "Delivered Duty Paid" courier option has been pre-arranged.

In the event that a delivery is refused by a customer due to dispute or non payment payment of their country customs/taxes and the purchased items are returned to THE MERCHANT then the total of these charges plus any surcharges or return courier fees, plus any additional return taxes and customs charges plus the original shipping fee plus a re-stock fee of £30.00 will be deducted from any customer refund.

CHASE rsp5.0 BMX Race Frame Pro XL 21 TT Black With Holographic Decals

Season:2026

Brand:Chase

Code:CHACADR420

Chase BMX started with the RSP 1.0 frame that Connor Fields rode from Day 1. Each time we updated the frame, we took the feedback from Connor, then Joris, and other Pro riders we sponsored. The RSP 5.0 is the culmination of the refinements and upgrades to make it our best Alloy frame ever.

The Chase RSP 5.0 Frames feature Tapered Headtube (Expert XL and above sizes), an Aero Seat Post tube, Enclosed Rear dropouts, Press Fit Bottom Brackets (Expert XL and Above), Triple and Double Butted tubes, Hydro and Muscle formed 7005 T6 Premium Ultralight tubing. RSP 5.0 Frames now feature a new internal cable routing from the Head Tube, through the Down Tube & Bottom Bracket, and exits out of the Chain Stay (Expert XL and Larger), and for the Mini – Expert, the cable exits out of the bottom of the down tube.

All Chase RSP 5.0 frames are Disc Brake only designed frames. The dropouts were restructured to offer better clearance for a wide array of disc brake calibers, improving the overall braking performance, and now compatible for both post and flat mount disc brake system (Disc Adapter kit sold separately).

The Chase RSP 5.0 Frame is now offered in a OS20 frame size option with refined geometry for riders wanting to use OS20 wheels, forks, and tires. OS20 uses the oversizes rims, tires, and forks to give larger riders a more comfortable ride as well as experience all the benefits of OS20.

OFFERED IN 15 DIFFERENT SIZES WITH 2 NEW OS20 SIZES

11 OPTIONS IN 20″ FRAME SIZES:

Mini, Junior, Expert, Expert XL, Pro, Pro+, Pro XL, Pro XL+, Pro XXL, Pro XXL+, Pro XXXL

2 OPTIONS IN OS20 FRAME SIZES:

Pro XXL and Pro XXXL

2 OPTIONS IN 24″ FRAME SIZES:

Pro and Pro+ Cruiser

INCLUDED WITH EACH FRAME:
Chain Tensioner & Bolts, Housing damper foam
NOT INCLUDED AND SOLD SEPARATELY:
Aero Seat Post Clamp and Seat Post, Disc Brake Adapter

Born from some of the best alloys for building BMX race bikes, our special 7005-T6 SpeedLite alloy is the perfect blend for our Hydroforming process, giving our RSP frames the core strength needed to produce unmatched speed on the track, while keeping the overall weight of the frame down to a minimum.

Chase feature the triple butting on our line of RSP frames. A triple-butted tube means it has three different wall thicknesses along its length. Chase uses this technology to reduce the amount of material used when building the RSP frame, decreasing its weight by 15% compared to last years frame tubes used to construct the frame. Lighter where it can be and stiffer where it needs to be means no excess weight on the bike that gives you an advantage with the RSP 5.0 frame and against the completion.

Chase RSP frames use tapered tubing to offer you the most durable, yet light weight products, to help you achieve optimum results on the BMX race track. Our tapered items, use multiple thicknesses in the same tube, so the tube can be reinforced where needed with precision to help reduce stress areas where needed and lighten up the areas that don’t require extra materials. In aluminum the result are tube walls that eliminate stress points, boosting strength, reducing weight and improving fatigue life. The advantage is clear : Tapered tubes enhances strength and durability, at less weight.

Hydroformed tubes have two main advantages. First, the narrow axis is a flatter surface, which means more surface area to carry the load, so it is stiffer & stronger across the minor axis. Secondly, the deeper axis is stiffer since the stiffness varies to the cube of the diameter, stronger to the square. When using an oval shaped tube on a typical BMX frame it helps reduce flex but only in one direction, but on the Chase frames, the tubes are oval in both directions in the main flex areas and these tubes help reduce flex in both main directions.

Chase ACT and RSP Frames feature the Aero seat post tube, seat post, and seat post clamp into BMX racing. This is to not only to help gain fractions of a second on the track with improved aerodynamics, but the Aero tubes also offers a slightly stiffer feel. We know BMX bikes don’t need to go fully aero testing into a wind tunnel, but when races are won or lost by fractions of a second, every advantage will help.

All Chase Frames feature Muscle Forming for Chain and Seat Stays, a technique to give the back end of the ACT and RSP frames the stiffness and design shape we wanted and needed for optional design a special mold and process were needed to let us build the ultimate frame. Used with Carbon Fiber or Alloy to do just that, while letting us design the exact shape, design, and thickness to offer the optional designed back end on the Chase frames.

For Chase ACT and RSP frames, we have designed them to be able to take the extra force created by using a disc brake and disc brake mount. The Dropouts, as well as the seat and chain stays need to be designed with a Disc brake in mind to give you the extra strength and clearance needed for disc mounts and the disc brake Caliper as well, while still be able to use the entire length of the drop out area.

While each rider is unique, Chase has developed Bio Fit sizing for our frames to offer riders the ultimate size options for BMX racing. The sizing used for the Chase line has been carefully designed to give riders the optimum power output in the size range offered. Our commitment to details and offering many size options, gives you a custom fit BMX frame, that you can buy right at your local Chase BMX Dealer.

Chase Frames use a Integrated Tapered Headtube. Tapered head tubes offer a combination for the bearing sizes. Our tapered head tubes have a 1-1/8” upper diameter to 1.5” lower diameter. this allows you to run a tapered steer tube fork, or use a full 1-1/8” fork steer tube, with the offered 1.5” lower bearing, when the headset has an optional 1-1/8” to 1.5” fork race option.

Chase Frames use a Press Fit style Bottom Bracket tube. Press Fit BB are a simple and easy way to install a Bottom Bracket, where the Bottom Bracket you supply for your frame has the Bearings in cups and simply press into the frame, eliminating the chance of damaging BB threads, with the traditional Euro BB. The BB is usually lighter and easier to install and remove as well.

Chase Frames feature an Fully enclosed, Extra long (2.3″ or 60mm) axle area slot, with reinforced stainless steel plates, 20mm drop outs with removable steel plate inserts to accommodate 20mm, 15mm or 10mm rear axle hubs. The Enclosed system also houses 2 different Chain tensioner systems, an Internal system with built-in alloy tensioner, or external Chain Tensioner system, allowing you to use the full length of the dropout.

Chase Frames feature Internal Cable Routing thru the top tube, giving you the factory look, as well as providing protection for the brake cable and graphics, since the cable does not rub against the frame.

GEOMETRIES
Frame SizeTTCS
min
LRFHTiresAFSABBHBB
type
HTHT
type
SPLSeat
Post
Dropout
type
Max Tires
Clearance
Brake
type
Weight
20"
Mini18"
457.2mm
12.76"
324mm
1.5"
38.1mm
12.1"
307mm
Front: 20×1-1/8"
Rear: 20×1-1/8"
73°70°10.6"
269.4mm
Euro BSA
68mm
4.5"
115mm
Integrated
IS 42/42
8.5"
215.9mm
Aero
25.4mm
Enclosed
3/8" – 10mm
20×1-1/8"Post or Flat mount
120/140mm
1.24 Kg
Junior19"
482.6mm
13"
330.2 mm
1.5"
38.1mm
12.1"
307mm
Front: 20×1-1/8"
Rear: 20×1-1/8"
73°70°10.6"
269.4mm
Euro BSA
68mm
4.5"
115mm
Integrated
IS 42/42
8.8"
223.52mm
Aero
25.4mm
Enclosed
3/8" – 10mm
20×1-1/8"Post or Flat mount
120/140mm
1.29 Kg
Expert19.5"
495.3mm
13.25"
336.55mm
1.5"
38.1mm
12.1"
307m
Front: 20×1-3/8"
Rear: 20×1-3/8"
73.4°70.4°11"
279.4mm
Euro BSA
68mm
4.7"
120mm
Integrated
IS 42/42
8.8"
223.52mm
Aero
25.4mm
Enclosed
3/8" – 10mm
20×1-3/8"Post or Flat mount
120/140mm
1.31 Kg
Expert XL20"
508mm
13.5"
342.9mm
1.5"
38.1mm
12.1"
307mm
Front: 20×1.60"
Rear: 20×1.40"
Rear: 20×1.60"

73°
75.5°

70°
72.5°

11" / 279.4mm
11.95" / 303.77mm
Press Fit
BB86
4.5"
115mm
Integrated
IS 42/52
8.8"
223.52mm
Aero
27.2mm
Enclosed
3/8" – 10mm
20×2.10"Post or Flat mount
120/140mm
1.62 Kg
Pro20.5"
520.7mm
14.25"
361.95mm
1.5"
38.1mm
12.1"
307mm
Front: 20×1.75"
Rear: 20×1.60"
Rear: 20×1.75"

74°
74.6°

72.5°
73.1°

11.5" / 292.1mm
11.74" / 298.3mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
9.3"
236.2mm
Aero
27.2mm
Enclosed
3/8" – 10mm
20×2.10"Post or Flat mount
120/140mm
1.67 Kg
Pro +20.75"
527.05mm
14.3"
361.95mm
1.5"
38.1mm
12.1"
307mm
Front: 20×1.75"
Rear: 20×1.60"
Rear: 20×1.75"

74°
74.6°

72.5°
73.1°

11.5" / 292.1mm
11.74" / 298.3mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
9.3"
236.2mm
Aero
27.2mm
Enclosed
3/8" – 10mm
20×2.10"Post or Flat mount
120/140mm
1.67 Kg
Pro XL21"
533.4mm
14.25"
361.95mm
1.5"
38.1mm
12.1"
307mm
Front: 20×1.75"
Rear: 20×1.60"
Rear: 20×1.75"

74°
74.6°

72.5°
73.1°

11.5" / 292.1mm
11.74" / 298.3mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
9.3"
236.2mm
Aero
27.2mm
Enclosed
3/8" – 10mm
20×2.10"Post or Flat mount
120/140mm
1.68 Kg
Pro XL +21.25"
539.75mm
14.5"
368.3mm
1.5"
38.1mm
12.1"
307mm
Front: 20×1.75"
Rear: 20×1.60"
Rear: 20×1.75"

74°
74.6°

72.5°
73.1°

11.5" / 292.1mm
11.74" / 298.3mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
9.3"
236.2mm
Aero
27.2mm
Enclosed
3/8" – 10mm
20×2.10"Post or Flat mount
120/140mm
1.70 Kg
Pro XXL21.5"
546.1mm
14.5"
368.3 mm
1.5"
38.1mm
12.1"
307mm
Front: 20×1.75"
Rear: 20×1.60"
Rear: 20×1.75"

74°
74.6°

72.5°
73.1°

11.5" / 292.1mm
11.74" / 298.3mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
9.3"
236.2mm
Aero
27.2mm
Enclosed
3/8" – 10mm
20×2.10"Post or Flat mount
120/140mm
1.71 Kg
Pro XXL +21.75"
552.45mm
14.8"
374.65mm
1.5"
38.1mm
12.1"
307mm
Front: 20×1.75"
Rear: 20×1.60"
Rear: 20×1.75"

74°
74.6°

72.5°
73.1°

11.5" / 292.1mm
11.74" / 298.3mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
9.3"
236.2mm
Aero
27.2mm
Enclosed
3/8" – 10mm
20×2.10"Post or Flat mount
120/140mm
1.72 Kg
Pro XXXL22"
558.8mm
15"
381mm
1.5"
38.1mm
12.1"
307mm
Front: 20×1.75"
Rear: 20×1.60"
Rear: 20×1.75"

74°
74.6°

72.5°
73.1°

11.5" / 292.1mm
11.74" / 298.3mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
9.3"
236.2mm
Aero
27.2mm
Enclosed
3/8" – 10mm
20×2.10"Post or Flat mount
120/140mm
1.72 Kg
Frame SizeTTCS
min
LRFHTiresAFSABBHBB
type
HTHT
type
SPLSeat
Post
Dropout
type
Max Tires
Clearance
Brake
type
Weight
OS 20"
OS Pro XXL21.5"
546.1mm
14.5"
368.3mm
1.5"
38.1mm
13.2"
334.5mm
Front: OS20x1.85"
Rear: OS20x1.60"
Rear: OS20x1.85"

74°
74.4°

72.5°
72.9°

11.5" / 292.1mm
11.67" / 296.4mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
10"
252.73mm
Aero
27.2mm
Enclosed
3/8" – 10mm
OS20x1.85"Post or Flat mount
120/140mm
1.72 Kg
OS Pro XXXL22"
558.8mm
15"
381mm
1.5"
38.1mm
13.2"
334.5mm
Front: OS20x1.85"
Rear: OS20x1.60"
Rear: OS20x1.85"

74°
74.4°

72.5°
72.9°

11.5" / 292.1mm
11.67" / 296.4mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
10"
252.73mm
Aero
27.2mm
Enclosed
3/8" – 10mm
OS20x1.85"Post or Flat mount
120/140mm
1.75 Kg
Frame SizeTTCS
min
LRFHTiresAFSABBHBB
type
HTHT
type
SPLSeat
Post
Dropout
type
Max Tires
Clearance
Brake
type
Weight
24"
Pro Cruiser21.5"
546.1mm
14.7"
374.58mm
1.5"
38.1mm
14"
355mm
Front: 24×1.75"
Rear: 24×1.60"
Rear: 24×1.75"

74°
74.3°

71°
71.3°

11.8" / 299.72mm
11.92" / 302.76mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
10.6"
269.24mm
Aero
27.2mm
Enclosed
3/8" – 10mm
24×2.10"Post or Flat mount
120/140mm
1.74 Kg
Pro + Cruiser22"
558.8mm
14.7"
374.58mm
1.5"
38.1mm
14"
355mm
Front: 24×1.75"
Rear: 24×1.60"
Rear: 24×1.75"

74°
74.3°

71°
71.3°

11.8" / 299.72mm
11.92" / 302.76mm
Press Fit
BB86
4.7"
120mm
Integrated
IS 42/52
10.6"
269.24mm
Aero
27.2mm
Enclosed
3/8" – 10mm
24×2.10"Post or Flat mount
120/140mm
1.76 Kg

Head Tube Angles and BB height will vary by the fork and tires used when Measuring. We have updated our angles to be exact when using a IKON Carbon Fork (For 20” or 24” frames) or ELEVN Cromo OS20 Forks (For OS20 Frames) using TIOGA Fastr tires to give you the true angels and measurements. Usage of other forks and tires will give you a + or – of Heights and Angles.

Please note:
Brake fluid on paint that is not silicone-based can act like a paint thinner and eat away at the coating of your paint, causing it to peel.
Due to different types of paints/decals/materials used for BMX parts, do not let the Brake Fluid touch any part of the bike, as there can be significant self infliced damage due to this.

SIZING CHART

The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local Chase retailer.
